Free-space optical comms: High data-rate connectivity from the ground up

-




Free-space optical comms: High data-rate connectivity from the ground up


FIGURE 1. FSOC is emerging as the answer to demands for ever-greater bandwidth in both terrestrial and satellite communications.



Wireless communication has witnessed remarkable advancements in recent years, driven by a growing demand for higher data rates and capacity. As traditional radio frequency (RF) and microwave technologies struggle to keep pace with these growing requirements, free-space optical communication (FSOC) has emerged as a frontrunner, to address bandwidth limitations and last-mile connectivity challenges (see Fig. 1).
What is FSOC?

FSOC operates on a straightforward principle: the transmission of modulated laser light through the air between a transmitter and receiver. This process involves lenses or parabolic mirrors to narrow and project the light toward the receiver where it is captured and focused onto an optical detector, typically a semiconductor photodiode. The optical signal is converted into an electrical one for processing (see Fig. 2).

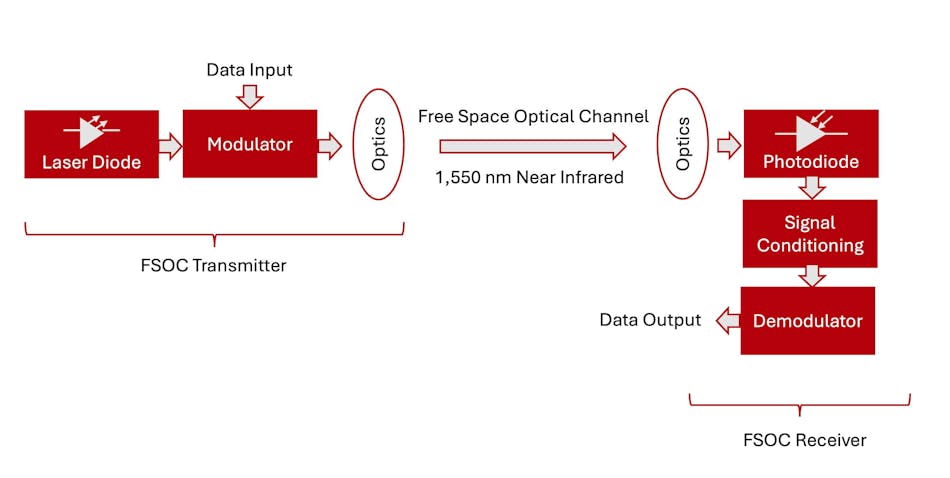

FIGURE 2. Near-infrared (1550 nm) is the optimal wavelength for FSOC and, unlike RF, this spectrum is unlicensed.

The technology leverages the visible and infrared (IR) light spectrum, in contrast to the RF spectrum used by most wireless systems. This offers significant benefits, not least a vast unlicensed spectrum in which FSOC systems typically operate at near-infrared (NIR) wavelengths between 700 and 1600 nm.

Compared to wireless systems, FSOC can operate with lower power consumption—which reduces cost and environmental impact. Narrow FSOC beams are also more focused than wireless emissions, and it boosts the received signal strength and mitigates the need for high-power transmitters. And antenna designs can be more compact using optics compared to RF. This reduces installation space constraints and aesthetic impact, which can be important where there is local sensitivity toward their presence. For cases in which the security of communications is important, FSOC systems may be preferred over wireless links because eavesdropping on optical links is technically challenging and the risk of interception is relatively low.

A further benefit of FSOC is that wireless channels are either regulated or where not regulated are already densely populated. FSOC needs no license and due to its narrow transmission angle, it is less susceptible to interference from other signals.
The market for FSOC technology

Most analysts predict strong growth for the FSOC market driven by growing demand for LTE networks, a desire for an alternative to RF technology, the requirement for more secure high-speed communications, and to address the challenges of last mile connectivity in optical networks—for fiber-to-the-premises (FTTP) and fiber-to-the-home (FTTH) installations.

VynZ Research’s report “Global Free Space Optics Market – Analysis and Forecast (2025-2030)”, forecasts a 30% compound annual growth rate (CAGR) for FSOC between 2025 and 2030, with the global market, led by the U.S., to reach a value of $1.9B, up from just $550M in 2023.

This positive forecast is despite the acknowledged challenges of environmental interference and installation capital costs. The report highlights the need for devices with greater photon efficiency to mitigate some factors that could limit growth.
FSOC applications

In terrestrial applications, FSOC promises to be a cost-effective alternative to fiber-optic systems for high-speed connections in multipoint scenarios, such as large organizations or remote areas. Furthermore, its high capacity and low latency make it a promising technology for 5G backhaul links. Some hybrid systems are evolving that combine RF and FSOC technologies to provide greater reliability by adapting to varying weather conditions and interference levels.

The space sector has recognized the potential of FSOC technology, particularly for satellite communications. The technology can be used for both earth-to-satellite and satellite-to-satellite communication. In the latter scenario, its performance is particularly impressive because atmospheric factors do not impede performance and in space, data rates can scale into the terabit-per-second (Tbit/s) range. As a result, the reduced weight, lower power consumption, and higher data rates of FSOC make it a particularly attractive alternative to RF systems in these applications (see Fig. 3).

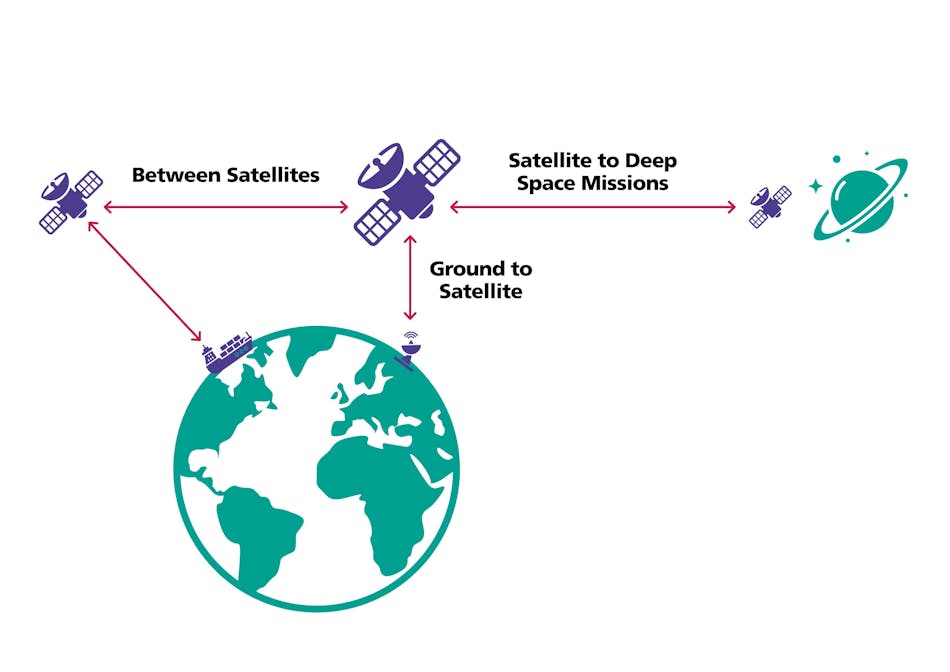

FIGURE 3. Beyond terrestrial communication, the technology can be used for both Earth-to-satellite and satellite-to-satellite comms.


Atmospheric conditions have, until recently, been a limiting factor in distance and bandwidth capabilities in FSOC. But techniques to mitigate these, such as adaptive optics, are now used and result in improved data rates for a given bit error rate (BER).

The first high-capacity space-to-ground laser communication system was installed on the Bartolomeo platform of the International Space Station (ISS) as part of a collaboration between Airbus Defense and Space, the Institute of Communications and Navigation of DLR (German Aerospace Center), and Tesat-Spacecom GmbH & Co. KG. The 2018 project, called OSIRIS, was designed to provide direct-to-earth (DTE) technology with a data rate of 10 Gbit/s over a range of about 1,500 km.

In 2024, a collaborative European initiative was launched to enhance Earth-to-FSOC technology. This project, supported by the European Space Agency (ESA), brought together a specialized sensor manufacturer, Phlux Technology, Airbus Defense and Space, and the University of Sheffield (U.K.). The primary objective of the ongoing work is to develop more efficient FSOC satellite terminals. The mid-range target is reliable 2.5-Gbit/s communication links operating at an IR wavelength of 1550 nm with low Earth orbit (LEO) satellites. The satellites typically orbit at altitudes up to 2,000 km above Earth's surface. Looking further ahead, the team aims to create systems capable of consistent 10-Gbit/s transmission rates. A radiation-hardened, integrated IR sensor and amplifier will be developed for the system.
How does sensor sensitivity impact FSOC performance?

One of the key technical challenges with achieving Earth-to-satellite and terrestrial FSOC is that the IR signals used to transmit data are diffracted as they pass through the troposphere, the atmospheric layer closest to Earth. Variations in our atmosphere's air temperature, humidity, and turbulence cause fluctuations in the intensity and angle of incidence of IR signals. This makes the beam wander over the signal detector area, which limits performance. The issue is addressed by using large-area receptors comprising multiple IR sensors.


These IR sensors are crucial components in FSOC receivers. Better sensors detect weaker signals, which enable development of faster, higher-bandwidth links with reduced latency. In Earth-to-satellite communications, they also improve performance because higher sensitivity allows maintenance of link integrity over a wider angle as the satellites pass overhead—resulting in longer periods of operation.

1550 nm is a commonly preferred wavelength for FSOC. It is a sufficiently longer wavelength than visible light, so it’s “eye safe” if people encounter the signal, and avalanche photodiodes (APDs)—based on indium gallium arsenide (InGaAs) APDs—exhibit peak sensitivity to IR light at this wavelength. The Fraunhofer Heinrich Hertz Institute states that 1550-nm beams are 50x safer than those at 850 nm, which were also proposed for FSOC.

Until recently, the sensitivity of 1550-nm APDs was limited by the internal noise generated within the devices, which limited the range and data rates achievable in FSOC systems. But in early 2024, noiseless InGaAs APDs were announced by Phlux Technology. These sensors, which add an antimony alloy to the compound semiconductor fabrication process, can detect exceptionally low levels of light down to single photons, which helps maintain signal integrity over long distances and under varying atmospheric conditions. They advance the performance of FSOC systems, offering 12x the sensitivity of traditional InGaAs APDs, which represents a potential 10.79-dB improvement in link efficacy before other noise sources such as amplifiers are considered
